® The New Design for Efficient Missile Nose Cone

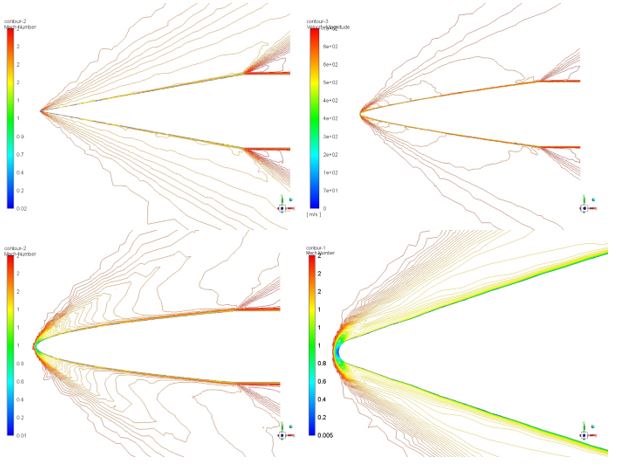

In this Reaserch we have performed CFD simulation of various shape of missile nose cone. This studied the numerical analysis of a typical nose of the missile with conventional geometry which can be used for various purposes like surface to air missile, air to air missile, air to surface missile, etc. Here our main goal is to obtain the thermal behavior and heat transfer rate over a different nose shape of the missile with the flow pattern along with lowest possible drag. Here we have analyzed the 6 types of missile nose shape such as CONICAL, POWER SERIES, TANGENT OGIVE, ELLIPTICAL, PARABOLIC, HAACK SERIES i.e. Von Karman and the optimized new design. And the results of these nose shapes are compared with the test data provided by client.
